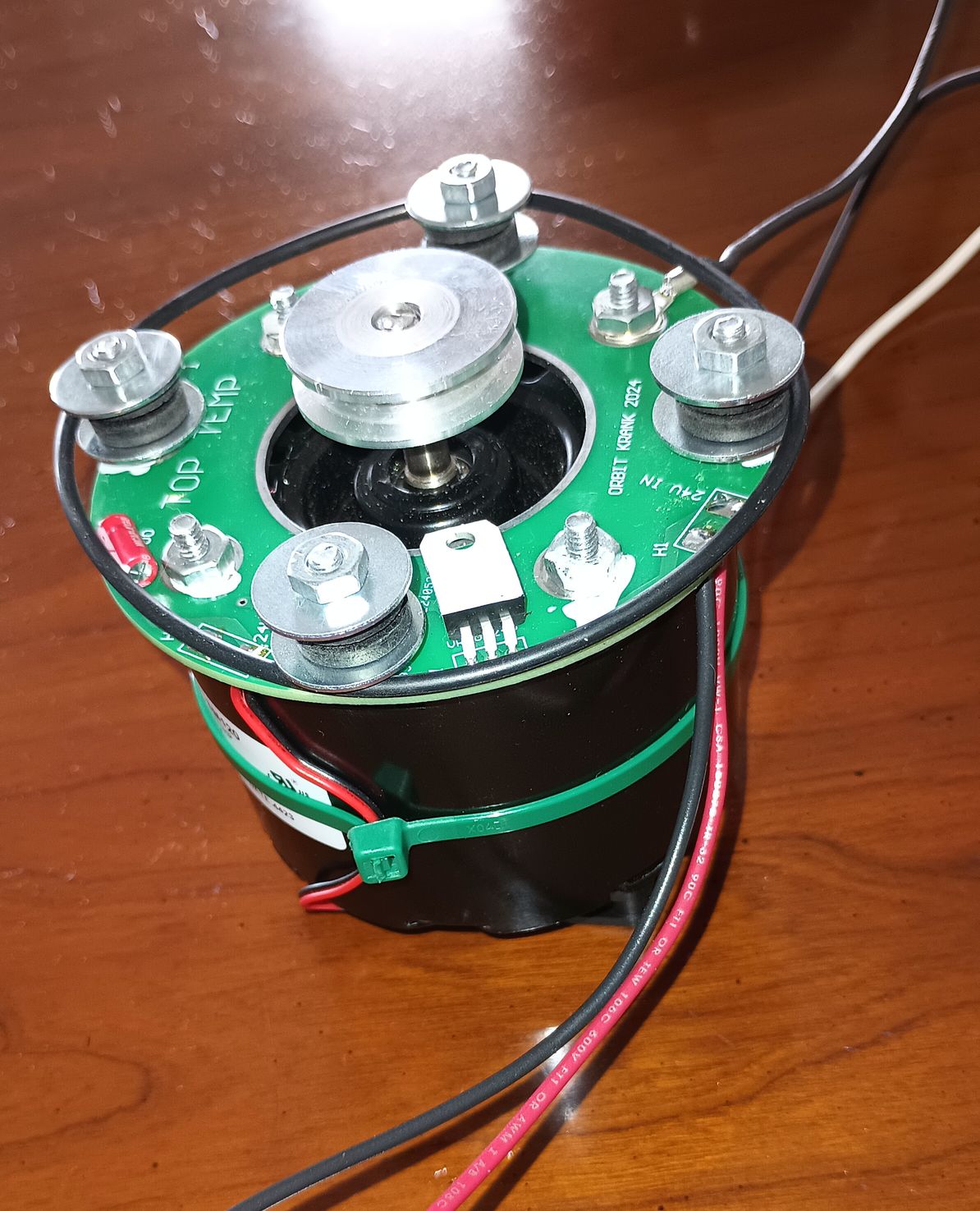

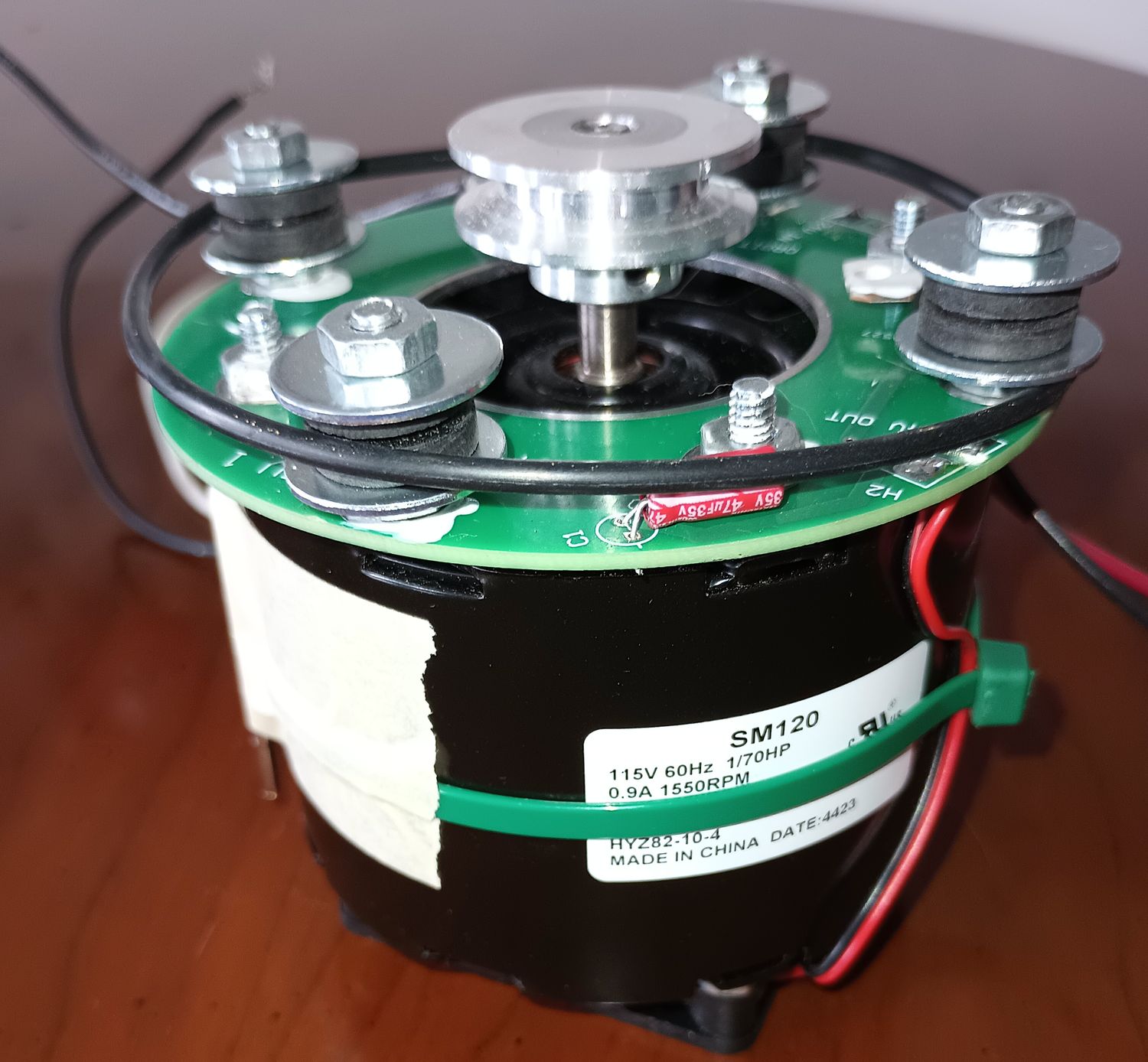

Finally a replacment motor for the EP3 and EP4
INSTALL INSTRUCTIONS BELOW

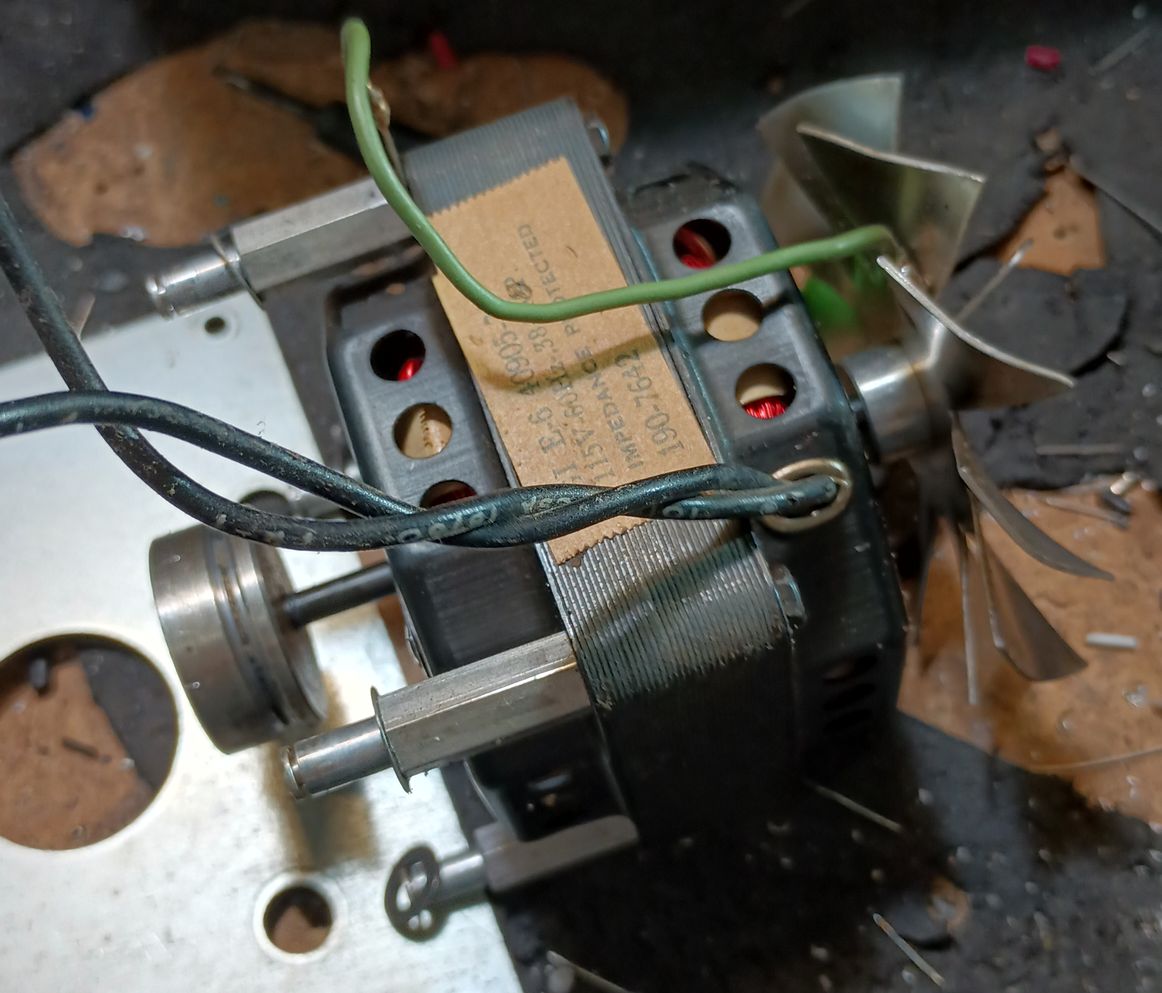

REPLACES THE SQUARE FOUR PIN MOTOR BELOW
MOTOR INSTRUCTIONS
Pull the old motor and prep the mounting plate with the new grommets. Install the new motor and make sure the AC wire are pointing toward the circuit breaker. Do not over tighten the grommet nuts and make sure the washers are on top.Just tighten the nuts until they make contact and just a 1/4 turn more. Adjust the pulley so the groves are level with each other.
Clean and lube the flywheel shafts and drop the belt around the bearing hole. Reinstll the mount plate with the motor installed. Bolt it back down and dont forget the ground wire. Solder the black and white leads to the power terminals. The red and black DC wires get soldered to the filter cap. Red to plus and black to negative. You might have to move stuff around to install the motor. Its pretty tight in there.
Use a hook tool to install the belt to the pulley grooves. Test the system. Check for clearances. Make sure the feet on the bottom the case are at least 1/2" tall. Do not block the airflow at he bottom on the unit. GOOD LUCK
BUY HERE $150 plus shipping
CLICK HERE FOR CANADA/MEXICO SHIPPING
CLICK HERE FOR USA SHIPPING
CLICK HERE FOR WORLDWIDE SHIPPING
New motors requires SOME
Soldering and mechanical skills
to install.
The echoplex chassis are pretty
tight to work on.
