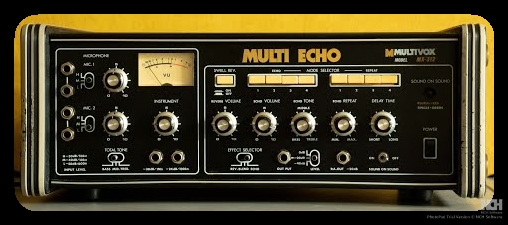

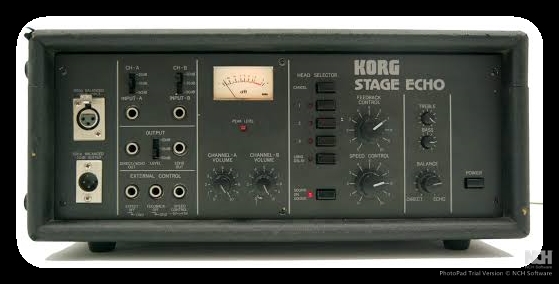

ECHOPLEX, MULTIVOX, KORG STAGE ECHO & ROLAND SPACE ECHO REPAIR ECHOPLEX/SPACE ECHO SERVICES:

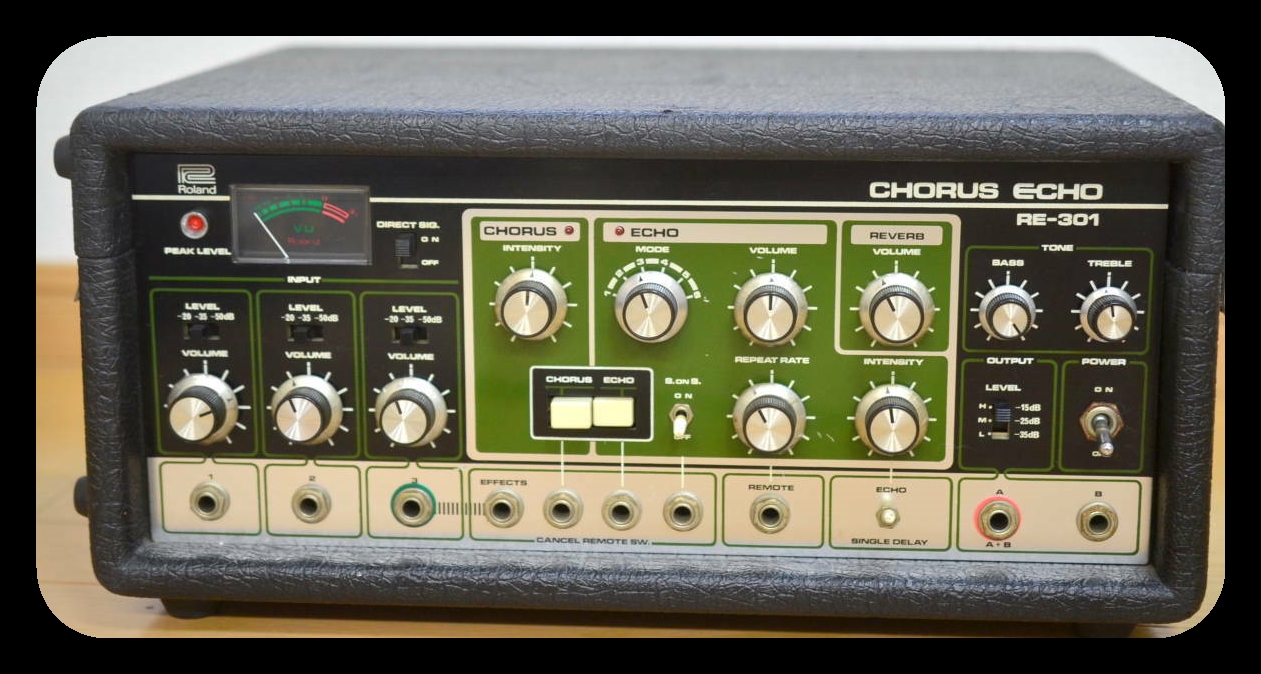

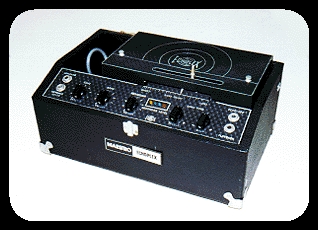

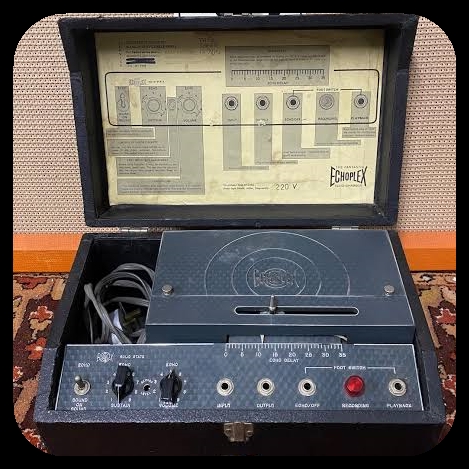

EP1,2,3 and 4 RE, 150, 201, 301, 501
NO SIREKO
BASIC SERVICE:
Recovered pinch roller (if needed), cap job (must be done on echoplex),
new belt, reload one (1) tape cart, align heads/degauss and more!
Approximate cost for EP1,2,3 or 4 $225.00-$270.00
Roland Echo $150.00-$200. 1-2 week turnaround.
15+ years experienced PHX area amplifier tech with flawless reputation.
Attention to detail excellent CUSTOMER SERVICE.
Fast turnaround most cases.
Reasonable rates.
Charge by the hour not by the job.
All work warranted.
No runaround.
HIGH QUALITY REPAIR WORK AND SERVICE.
Payment with money order or credit card.
ECHOPLEX CARTRIDGE RELOADING
WE CAN RELOAD YOUR OLD CARTRIDGE!! ($23.00 plus shipping).
Send in your old tape(s) and it gets Ampex 456 tape. Ampex 456 is "safe" for heads. It does not ruin your heads. Not cleaning and maintaining your machine what is is bad for your heads.
CLICK THE LINKS ABOVE FOR MORE INFO.
SHIPPING INSTRUCTIONS
Please pack the ECHO unit in bubble pack about 2-4 inches thick for
safe travel. Put a note (with your contact info) along with it Once I get the unit I will give you an estimate for you to approve. Once we get the go ahead from you the unit will take a fews days to finish. We take Credit Card or money orders.
Personal/business check will have to wait until the check clears.
SHIP TO:
Orbit Electronix
500 N 56th ST #14
Chandler, AZ
85226
480-207-6731

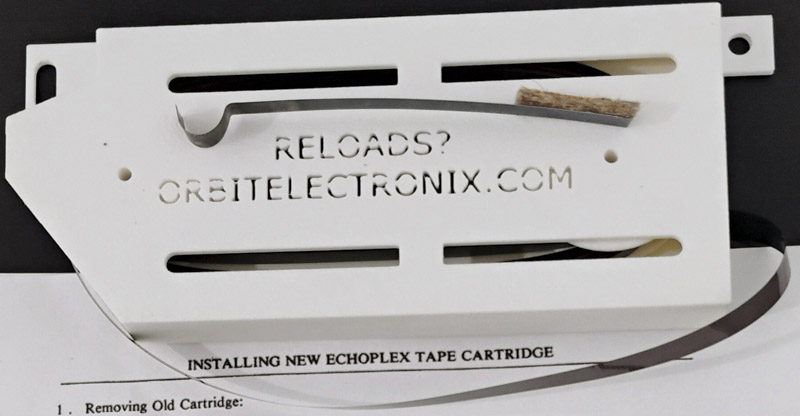

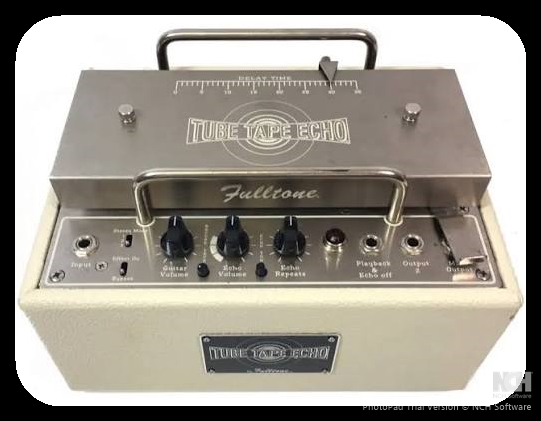

We offer Brand New tape cartridges for your Echoplex, Tubeplex and Fulltone tape
echo machine. (we have roland space echo tapes too) Made from aluminum NOT plastic. Loaded with NOS Echoplex tape for long lasting high quality tone. The best part about our new tape cartridge is
it's RE LOADABLE. Thats right. When the tape wears out all you need to do is send it back to Orbit Electronix and we will reload it with brand new tape ($23.00 plus return shipping). This means
that THIS cartridge is the ONLY one you need. It can be reloaded with new tape over and over. No more hunting around for new tape cartridges EVER AGAIN!!! Much better than the plastic cartridges
since the tolerances are much tighter than plastic.
KLICK THE LINK ABOVE TO ORDER!
WE HAVE THE RT-1 SPACE ECHO TAPE REPLACMENTS IN STOCK!
For Multivox, Korg, RE101, RE201, RE301, RE501, RE555
Sold in packs of four.
CLICK HERE TO PURCHASE:
The Psycoplex in Action
Thats right a REAL BBD analog Delay with 650Ms delay time.
Brand New by Orbit Electronix. Designed after the Echoplex
EP-2 input circuit a tapeless "tape" echo.
Tube input buffer (12AX7) that runs on high voltage
buffereing your guitar signal then to the delay
circuit with analog compander and analog recovery.
Very much like the EP1-2 without the hassle of the tape.
Very nice warm dreamy sounding echo.
specifications:
12 VDC power input. Special design Pat. Pending high voltage convertor for the preamp circuit. 650mS delay time with "long" and
"short" delay time switch. 1M ohms input impedance. Features
Time, Repeat and Level controls KLICK HERE FOR A DOPPLER SOUND BITE!
SOUND BITE #1
SOUND BITE #2
299.00 plus shipping KLICK BELOW TO ORDER.(prices include shipping)
The Repeat Offender
The Repeat Offender features the ECHOPLEX EP3 TIS58 (NOS) input FET. The main reason why the Echoplex sounds the way it does. Why buy some over
priced pedal that just boosts the signal with no delay and doesn't even use the right NOS transistor ?
KLICK HERE FOR A DOPPLER SOUND BITE!
SOUND BITE #1
SOUND BITE #2
KLICK THE LINK ABOVE TO ORDER!
Maestro EP-3 Echoplex ECHO PLEX EP3 NOT A SECRET Boost Pedal by TONYKRANK
For $150.00 to $200.00 you can buy EP booster units on Ebay that "claim" to be the SO-CALLED
"secret" preamp.
Well the preamp for an EP3 solid state Echoplex is NOT a secret at all!!!!
For less money you can get the "correct" circuit copying the EP3 as close as you can get.
The differences:
1) OURS uses the CORRECT input transistor. A REAL NOS vintage 70s TIS58. This is a MUST if you want the tone correct.
THEY do not use the correct vintage transistor. Thats like making an AC30 that uses 6L6 power tubes.
2) THEY only double the voltage to 18 volts. The REAL EP circuit ran on 22 volts and NOT 18 volts.
The other problem is that a 9 volt battery is only about 8.1 volts (with load). At best the circuit is running at about 16-17 volts.
Thats not 18 or 22 volts.
Our booster TRIPLES the 9 volt battery (8.1 volts in real life) and then it is regulated to the CORRECT 22 volts.
Whats the big deal about voltage you say???
Its called headroom. In this circuit the TIS58 FET needs the higher voltage to sound good.
That equals warmth, punch, tone and sounds "pro" sounding like a REAL effects units and not sounding like a typical "toy" 9 volt pedal.
3) Carbon composition resistors (gives it the old school sounding "organic" tone and feel).
Poly film caps.
True-Bypass, USA made Switchcraft jacks, FR4 industry standard double sided PCB.
ONLY $79.99 not $150.00 to $200.00.
So do you still want to pay more than $100.00 now that you have the facts????.
Has 9 volt AC adapter jack as well.
9 VDC tip negative will work with pretty much ANY 9 volt adapter that is tip negative.
USA buyer pay $7.50 insured shipping (USPS).
NON usa buyer pays $17.00 shipping.
Maestro EP-2 Echoplex ECHO PLEX EP2 NOT A SECRET TUBE Boost Pedal by TONYKRANK
For $150.00 to $200.00 you can buy EP3 booster units on Ebay that "claim" to be the SO-CALLED
"secret" preamp.
F**K that! This is the TUBE VERSION!
Thats right the TUBE VERSION EP-2 style (12AX7 similar to 6EU7 but different pinout)
Now you can get the BOOST (and more) that the EP2 is famous for.
Pedal gives you a lot of super clean gain to warm up your digital pedals or overdrive your guitar amp (or bass too).
.
True-Bypass, USA made , FR4 industry standard double sided PCB.
Comes with the 12 volt AC adapter as well.
Using a DC to DC converter it takes the 12VDC and bumps it up to the PROPER 100VDC for real TUBE GAIN and TONE
USA buyer pay $10.00 insured shipping (USPS).
NON usa buyer pays $23.00 shipping.
